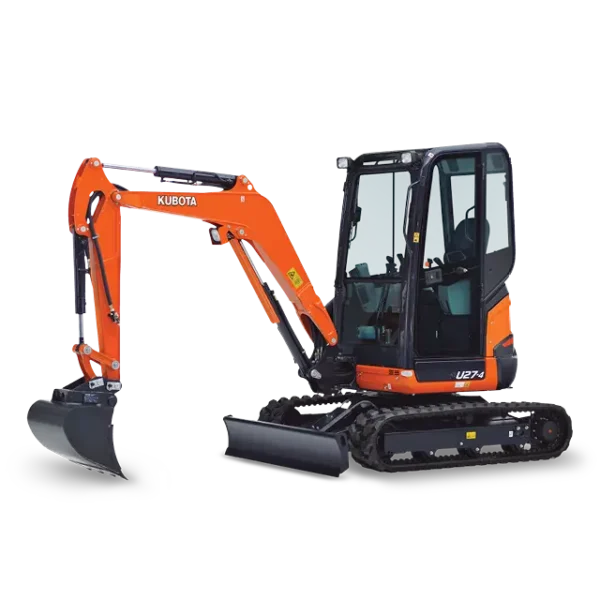

U27-4 Mini-Excavators

Description

Model
Model name: U27-4
Engine
Model: D1105-BH
Make: Kubota
Rated engine speed: 2400 rpm / 2400 rpm
Displacement: 68.5 cu. in. / 1123 cc
Output (SAE J1995 gross): 20.8 HP / 15.5 kW
Output (SAE J1349 net): 20 HP / 14.9 kW
Hydraulic system
Auxiliary hydraulic flow
Pump capacity: 7.6 gpm / 28.8 l/min
Bucket: 7014 lbf / 3180 kgf
Arm: 2777 lbf / 1260 kgf
Dimensions and weight
Ground clearance: 12.1 in / 307 mm
Overall height: 95 in / 2420 mm
Overall length: 162 in / 4100 mm
Overall width: 59 in / 1500 mm
Blade
Width: 59 in / 1500 mm
Height: 11.8 in / 300 mm
Maximum lift above ground: 14.2 in / 360 mm
Maximum drop below ground: 12.6 in / 320 mm
Operating weight
Including operator’s weight @ 175 lbs.: 5688 lb / 2580 kg
Tracks
Type: Rubber
Drive system
Travel speed
Low: 1.6 mph / 2.6 km/h
High: 2.7 mph / 4.3 km/h
Maximum traction force: 6767 lbf / 3069 kgf
Crawler length: 78.3 in / 1990 mm
Shoe width: 11.8 in / 300 mm
Ground contact pressure
3.321 psi / 0.234 kg/cm2
Tumbler distance
61.4 in / 1560 mm
Swing system
Unit swing speed
9.9 rpm / 9.9 rpm
Boom swing angle
Left
75 deg / 75 deg
Right
55 deg / 55 deg
Fluid capacities
Hydraulic Oil
Reservoir
5.8 gal / 22 l
System
9.7 gal / 37 l
Fuel
Reservoir
8.7 gal / 33 l
ROPS / FOPS
Type
Canopy
